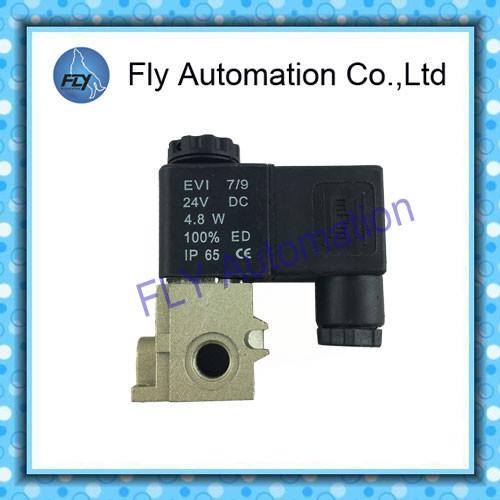

Pneumax Series 300 Direct Operated Solenoid Valves 305.M4 12VDC 305.M5 24VDC G1/8"
Technical characteristics
| Pnematic | Working presuree | 0 - 10 bar |
| Orifice size | 1.3mm |
| Maximum fluid temperature | 50℃ |
| Maximum ambient temperature | 50℃ |
| Maximum flow rate at 6 bar | 53 NI/min |
| Cycles/minute | 700 |
| Fluids | Air- Vacuum-Inert gases |
| Lubrication | Non needed |
| Life | 40 to 50 million cycles |
| Electrical | Power consumption holding- D.C | 5 W |
| Power consumption holding- A.C | 8 VA |
| Operating voltage tolerance | ± 10% |
| Response time opening | 8 ms |
| Response time closing | 6 ms |
| Insulation of the copper wire | H |
| Insulation of the coil | F |
| Connector of the coil | IP 65 |
| Cable protection | DIN 43650 INDUSTRIAL FORM |
Materials
| Body | Aluminium, black anodized |
| End covers + interface plates | Glass-filled polyamide |
| Internal parts | Zamak, stainless steel, acetal (POM), aluminium |
| Sealing | NBR + PUR |
| Core and core tube | Stainless steel |
| Shading coil | Copper |
Miniature solenoid valve ordering code
| Oridering code | Available voltage |
| G 1/8" | Miniature solenoid |
| 305.M4 | 12 DC | Direct current |
| 305.M5 | 24 DC |
| 305.M6 | 48 DC |
| 305.M9 | 24 DC |
| 305.M17 | 24/50 | Alternating current
50Hz |
| 305.M21 | 48/50 |
| 305.M22 | 110/50 |
| 305.M24 | 220/50 |
| 305.M37 | 24/60 | Alternating current
60Hz |
| 305.M39 | 110/60 |
| 305.M41 | 220/60 |
| 305.M56 | 24/50-60 | Alternating current
50/60 Hz |
| 305.M57 | 110/50-60 |
| 305.M58 | 220/50-60 |
| 305.M66 | 24/50-60 | Alternating current
low consumption
50/60 Hz |
| 305.M67 | 110/50-60 |
| 305.M68 | 220/50-60 |
